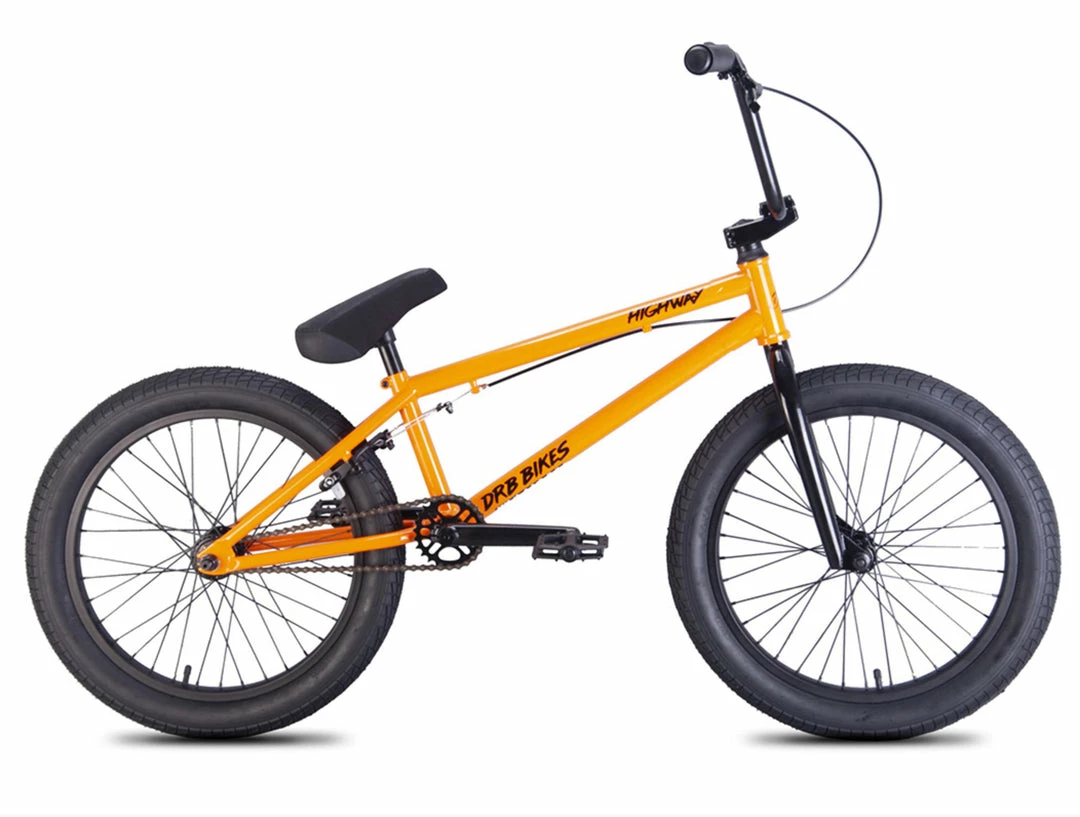

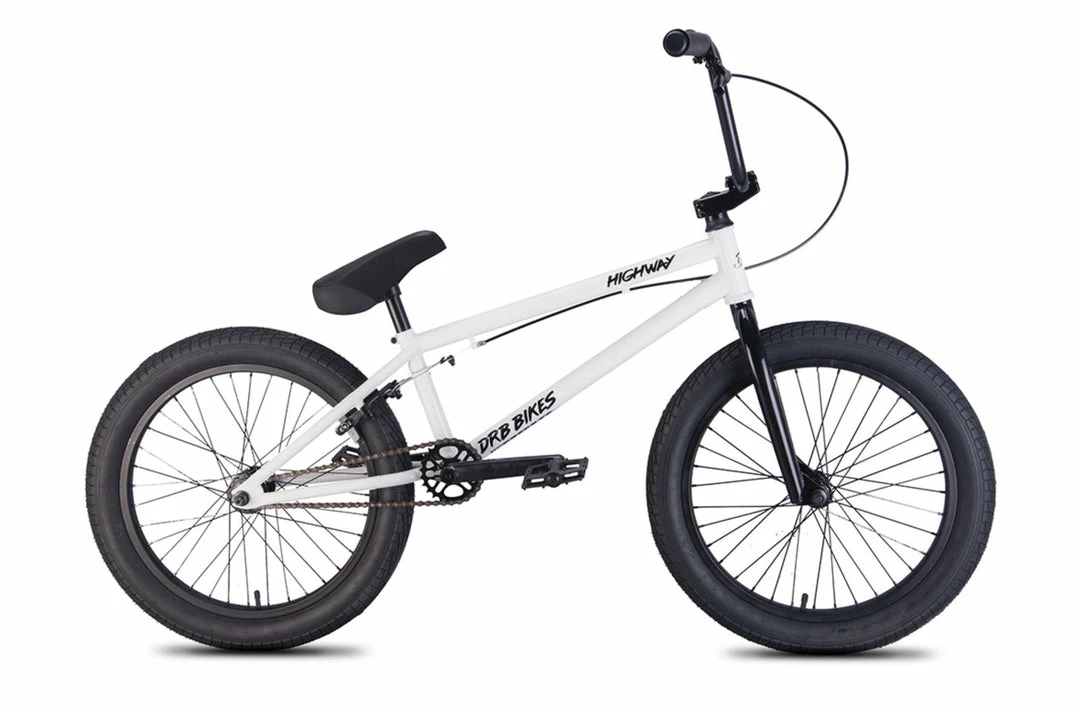

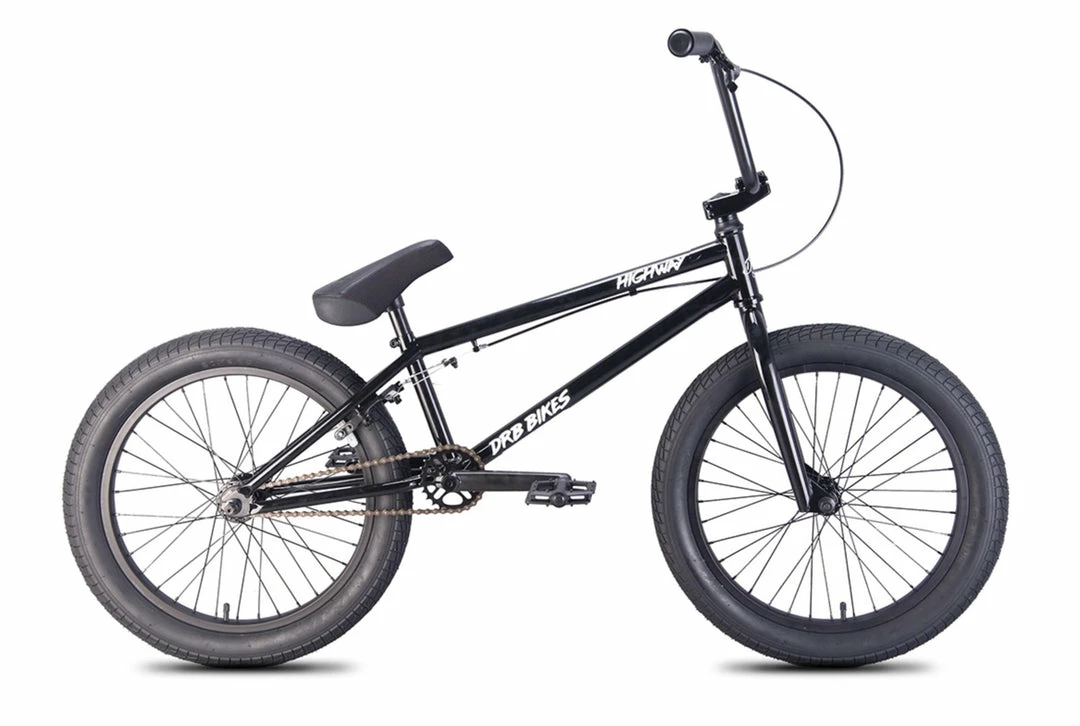

DRB Bikes – Highway Complete 20″ Bike
The DRB Highway model is a the great option for the beginnerΒ BMX riders. Highway geometry follows the standards of the higher endΒ bikes. Parts are easy to replace allowing upgrades for Pro parts such as Integrated headset, MID BB andΒ 25/9 gearing.
FRAME
-
Hi-Ten 1020 – Toptube 20.6″.Β
-
Head Tube Angle 75Β°/ Seat Tube Angle71Β°/ Seat Tube height 8.15″
-
Chainstay 13.25″/ BB height 11.50″.
-
Top and DowntubeΒ Gussets.
-
Welded brake mounts.
-
5mm Dropouts.
-
Integrated Seatclamp.Β
-
Compable with 2.40″ tyres
FORKS
-
Hi Ten 2 PieceΒ Steerer Tube
-
6mm Dropouts.
-
30mm Offset allowing pegs.
BARS
-
Hi-Ten 1020, Height 9″,Β Width 29″,Β Back sweep 11Β°,Β Upsweep 2Β°
PARTS
-
DRB Ant Stem, forged alloy 50mm reach,Β 32mm rise.
-
Grips made of Krayton 145mm with nylon bar end
-
Forged alloy brake lever.
-
Integrated headset with sealed bearings.
-
3 Pcs full Cr-Mo 175mm crank 8 spline.
-
MID BB 19mm Sealed Bearings.
-
Steel sprocket 25T.
-
Nylon pedals 9/16.
-
Combo seat made in Synthec Material with DRB Logo.
-
Alloy 100% Sealed Front Hub, 3/8 male axle, with 17mm nuts.
-
Alloy Front and Rear rim.
-
Alloy 100% sealed Cassete Hub 100%, male 14mm Cr-Mo axle, 9T and nuts 17mm.
-
Front and rear Tyre 2.40″ – 60psi.
