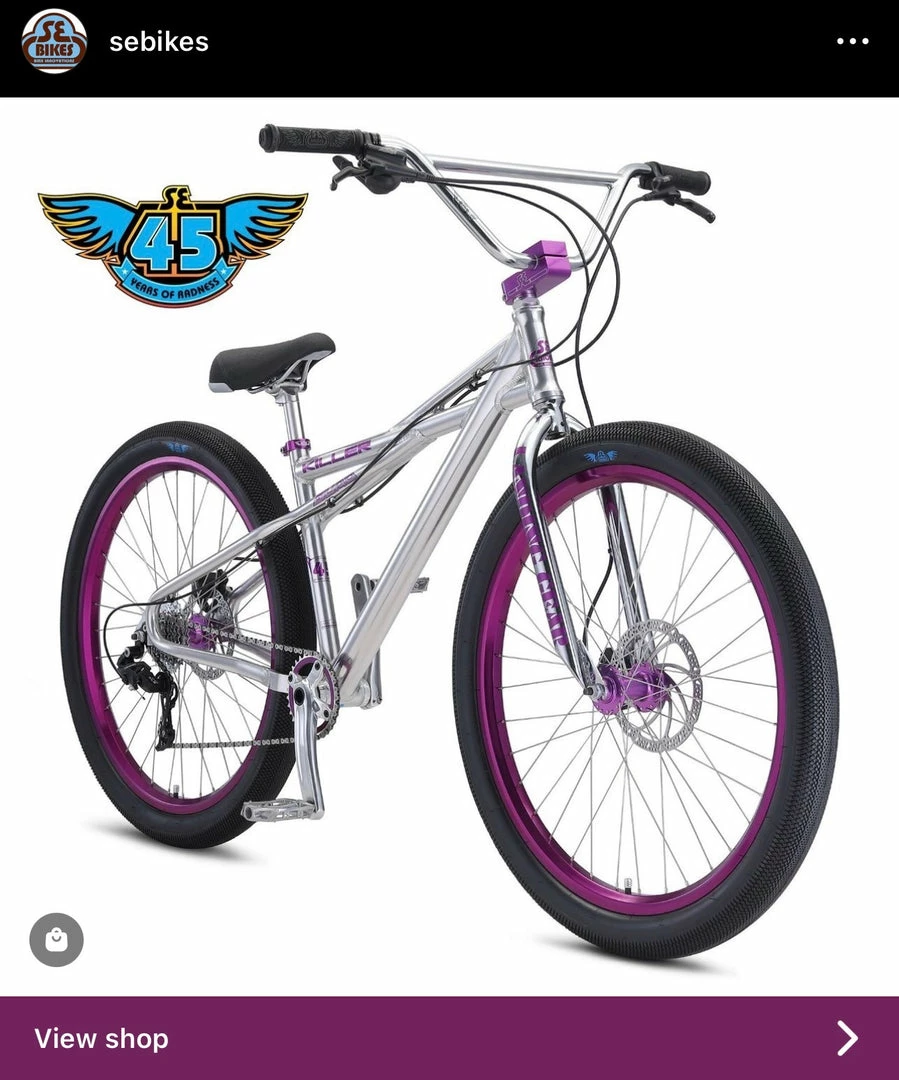

Now this is one KILLER ride! The all-new 27.5” Killer Quad is perfection on wheels. This bike has everything you’d want and more. It is built around a unique Quad frame design featuring an oversized downtube, integrated headset, super stiff BB yoke, and a legendary looptail rear end. It comes equipped with a microSHIFT XLE 1×10 drivetrain, Tektro hydraulic disc brakes, and wide 27.5” x 2.5” Vee Speedster tires. When you want to go for a killer ride, this is definitely the bike to have.

Key Features

• 6061 Aluminum Killer Quad frame with oversized downtube, integrated headset, and looptail rear end
• Full Cr-Mo Landing Gear forks
• SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring
• FSA Orbit CE integrated sealed bearing headset
• Vee Tire Co x SE Racing 72tpi Speedster 27.5″ x 2.5″ tires
• MicroShift XLE RD-M61S 1×10 short-cage derailleur
• Sealed-bearing rear alloy hub with double-wall rims and microSHIFT 11-32T 10-speed cassette
• Tektro hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
• SE Flyer seat with bottle opener
• 33.9 pounds

SPECIFICATIONS

COLOR(S)	High Polish Silver
FRAME	6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger
FORK	Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts
CRANKSET	SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 32T Alloy Chainring
PEDALS	Wellgo Low-profile Platform
REAR DERAILLEUR	MicroShift XLE RD-M61S, 1×10, Short Cage
SHIFTERS	MicroShift XLE Xpress SL-M850-R, 1×10, Sealed Bearing, Alloy Lever
CASSETTE	MicroShift XLE CS-H100, 10-speed, 11-32T
CHAIN	KMC S1
WHEELSET	Alloy 36H Nutted Hubs, 135mm Sealed Rear Hub, 110mm Front Hub, Double-wall Rims, 11-32T 10-speed Cassette, Stainless Spokes
TIRES	Vee Tire Co x SE Racing Speedster, 72TPI, 27.5″ x 2.5″ Front & Rear
BRAKESET	Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor
BRAKE LEVERS	Tektro HD-M285, 2-Finger Alloy, Front & Rear
HEADSET	FSA Integrated Orbit CE, Sealed 1-1/8″
HANDLEBAR	Big Honkin’ Cr-Mo Cruiser Bar, 31″ x 7″, 12° Backsweep, 2° Upsweep
STEM	Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
GRIPS	SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs
SEAT	SE Flyer Seat w/ Custom SE Bottle Opener Brace
SEATPOST	Micro-Adjust Alloy, 27.2mm
SEAT CLAMP	SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter
ACCESSORIES	Alloy Valve Caps, Removable Derailleur Hanger
WEIGHT	33.9 lbs / 15.39



**Specifications are subject to change without notice.**
