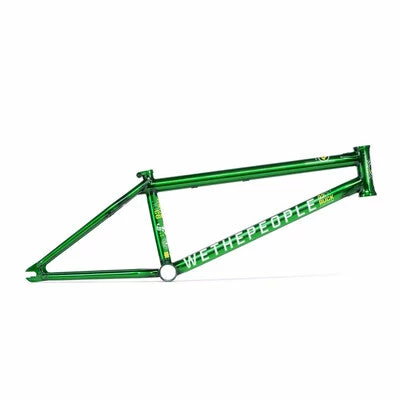

Flash Sale 🌟 We The People WTP Buck FRAME All BMX P&A ❤️

TUBING:
butted, seamless 4130 chromoly tubing japanese

TOPTUBE:
20.5″, 20.75 “or 21” TT

CHAINSTAY LENGTH:
13.2″ with 25-9 gearing

ANGLES:
HT: 75.5 °, ST: 71 °

BOTTOM BRACKET:
mid-bb width: 74mm, height: 11.8 “, cnc machined and heat-treated

HEADTUBE:
taller 127mm height, cnc machined and heat-treated, integ. h / set, drilled for  gyro tabs

DROPOUTS:
7mm thick investment cast and heat-treated

SPECIAL FEATURES:
ovalised dent resistant chain stays

taller 127mm extended headtube for less spacers with an uncut fork

wider rear triangle allows clearance for a 2.50″ tire

extruded top tube with integrated threads for cable guides

frame comes drilled for Pivot-3 type removable brake mounts, but brake hardware is NOT included

 slim profile integrated seat clamp

 top and down tube gussets



FRAME GEOMETRY

Top Tube:  20.5″/20.75″/21″

Chain Stay: 13.2″

Head Tube Angle: 75.5°

Seat Tube Angle: 71°

Bottom Bracket Height: 11.8”

Stand Over Height: 9.25”
